Home > SLEWING BEARINGS > SINGLE ROW CROSS ROLLER SLEWING BEARINGS
RKS.161.14.0944
RKS.161.14.0944

RKS.161.14.0944

Description

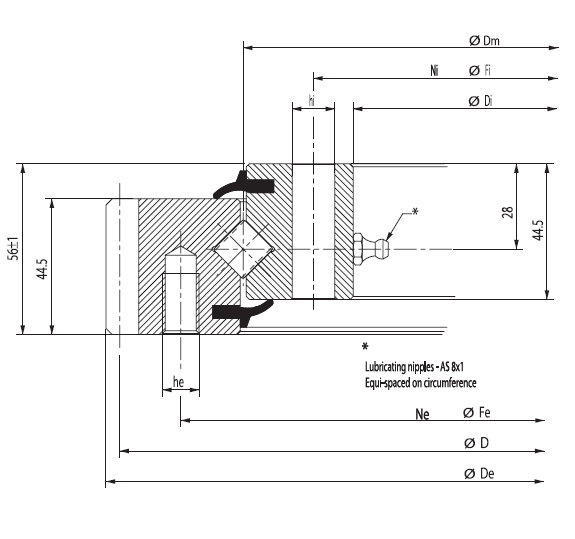

CROSSED ROLLER SLEWING BEARINGS WITH EXTERNAL GEAR TEETH
designation main dimensions fixing holes gear teeth mass
De Dm Di Fe he Ne Fi hi Ni D m Z Kg
RKS.161.14.0414 503.3 414 344 455 M12 20 368 14 24 495 5 99 32
RKS.161.14.0544 640.3 544 474 585 M12 28 498 14 32 630 6 105 44
RKS.161.14.0644 742.3 644 574 685 M12 32 598 14 36 732 6 122 52
RKS.161.14.0744 838.1 744 674 785 M12 36 698 14 40 828 6 138 59
RKS.161.14.0844 950.1 844 774 885 M12 36 798 14 40 936 8 117 71
RKS.161.14.0944 1046.1 944 874 985 M12 40 898 14 44 1032 8 128 77
RKS.161.14.1094 1198.1 1094 1024 1135 M12 44 1048 14 48 1184 8 148 91
