SINGLE ROW FOUR POINT CONTACT BALL SLEWING BEARINGS
Home > SLEWING BEARINGS > SINGLE ROW FOUR POINT CONTACT BALL SLEWING BEARINGS
RKS.062.20.0644
RKS.062.20.0644

RKS.062.20.0644

Description

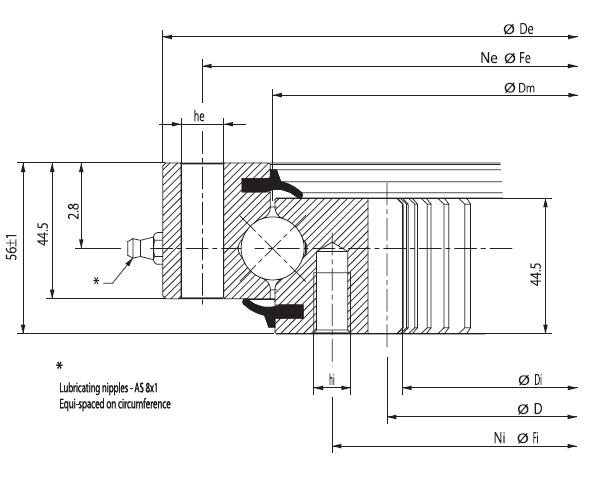

FOUR POINT CONTACT SLEWING BEARINGS WITH INTERNAL GEAR TEETH
designation main dimensions fixing holes gear teeth mass
De Dm Di Fe he Ne Fi hi Ni D m Z Kg
RKS.062.20.0414 486 414 325 460 14 24 375 M12 24 335 5 67 31
RKS.062.20.0544 616 544 444 590 14 32 505 M12 32 456 6 76 42
RKS.062.20.0644 716 644 546 690 14 36 605 M12 36 558 6 93 50
RKS.062.20.0744 816 744 648 790 14 40 705 M12 40 660 6 110 58
RKS.062.20.0844 916 844 736 890 14 40 805 M12 40 752 8 94 69
RKS.062.20.0944 1016 944 840 990 14 44 905 M12 44 856 8 107 76
RKS.062.20.1094 1166 1094 984 1140 14 48 1055 M12 48 1000 8 125 91
